Flat and recessed grilles for vertical slider, over frame, bi-fold or patio door applications
Link Vent recessed and flat grilles
White
2900-00000B
Brown
2900-00001B
Black
2900-00002B
Pure White RAL 9010
2900-00003B
Brilliant White
2900-00004B
Tan
2900-00005B
Cream White
2900-00007B
Grey RAL 7015
2900-00009B
Grey RAL 7016
2900-00010B
Plain Irish Oak
2900-00011B
Cream RAL 1015
2900-00014B
Chartwell Green
2900-00015B
Basalt Grey
2900-00016B
Agate Grey
2900-00017B
Wine Red
2900-00018B
Steel Blue
2900-00019B
Moss Green
2900-00020B
Dark Green
2900-00021B
Hazy Grey RAL 7001
2900-00022B
Dark Red
2900-00023B
Quartz Grey RAL 7039
2900-00024B
Light Grey RAL 7035
2900-00028B
Ice Cream RAL 9001
2900-00030B
Windsor
2900-00031B
Balmoral
2900-00032B
Pebble Grey
2900-00033B
Natural Oak
2900-00034B
Red Wood
2900-00035B
White
2901-00000B
Brown
2901-00001B
Black
2901-00002B
Pure White RAL 9010
2901-00003B
Brilliant White
2901-00004B
Tan
2901-00005B
Cream White
2901-00007B
Grey RAL 7015
2901-00009B
Grey RAL 7016
2901-00010B
Irish Oak
2901-00011B
Cream RAL 1015
2901-00014B
Chartwell Green
2901-00015B
Basalt Grey
2901-00016B
Agate Grey
2901-00017B
Wine Red
2901-00018B
Steel Blue
2901-00019B
Moss Green
2901-00020B
Dark Green
2901-00021B
Hazy Grey RAL 7001
2901-00022B
Dark Red
2901-00023B
Quartz Grey RAL 7039
2901-00024B
Rustic Cherry
2901-00025B
Soft Cherry
2901-00026B
Anteak Painted
2901-00027B
Light Grey RAL 7035
2901-00028B
Egg Shell Painted
2901-00029B
Ice Cream RAL 9001
2901-00030B
Windsor
2901-00031B
Balmoral
2901-00032B
Pebble Grey
2901-00033B
Natural Oak
2901-00034B
English Oak Painted RAL 1002
2901-00035B
Redwood
2901-00036B
Plain Golden Oak
2901-00037B
White
5900-00000B
Brown
5900-00001B
Black
5900-00002B
Pure White RAL 9010
5900-00003B
Brilliant White
5900-00004B
Tan
5900-00005B
Cream White
5900-00007B
Grey RAL 7015
5900-00009B
Grey RAL 7016
5900-00010B
Plain Irish Oak
5900-00011B
Cream RAL 1015
5900-00014B
Chartwell Green
5900-00015B
Basalt Grey
5900-00016B
Agate Grey
5900-00017B
Wine Red
5900-00018B
Steel Blue
5900-00019B
Moss Green
5900-00020B
Dark Green
5900-00021B
Hazy Grey RAL 7001
5900-00022B
Dark Red
5900-00023B
Quartz Grey RAL 7039
5900-00024B
Light Grey RAL 7035
5900-00028B
Ice Cream RAL 9001
5900-00030B
Windsor
5900-00031B
Balmoral
5900-00032B
Pebble Grey
5900-00033B
Natural Oak
5900-00034B
Red Wood
5900-00035B
White
5901-00000B
Brown
5901-00001B
Black
5901-00002B
Pure White RAL 9010
5901-00003B
Brilliant White
5901-00004B
Tan
5901-00005B
Cream White
5901-00007B
Grey RAL 7015
5901-00009B
Grey RAL 7016
5901-00010B
Irish Oak
5901-00011B
Cream RAL 1015
5901-00014B
Chartwell Green
5901-00015B
Basalt Grey
5901-00016B
Agate Grey
5901-00017B
Wine Red
5901-00018B
Steel Blue
5901-00019B
Moss Green
5901-00020B
Dark Green
5901-00021B
Hazy Grey RAL 7001
5901-00022B
Dark Red
5901-00023B
Quartz Grey RAL 7039
5901-00024B
Rustic Cherry
5901-00025B
Soft Cherry
5901-00026B
Anteak Painted
5901-00027B
Light Grey RAL 7035
5901-00028B
Egg Shell Painted
5901-00029B
Ice Cream RAL 9001
5901-00030B
Windsor
5901-00031B
Balmoral
5901-00032B
Pebble Grey
5901-00033B
Natural Oak
5901-00034B
English Oak Painted RAL 1002
5901-00035B
Redwood
5901-00036B
Plain Golden Oak
5901-00037B

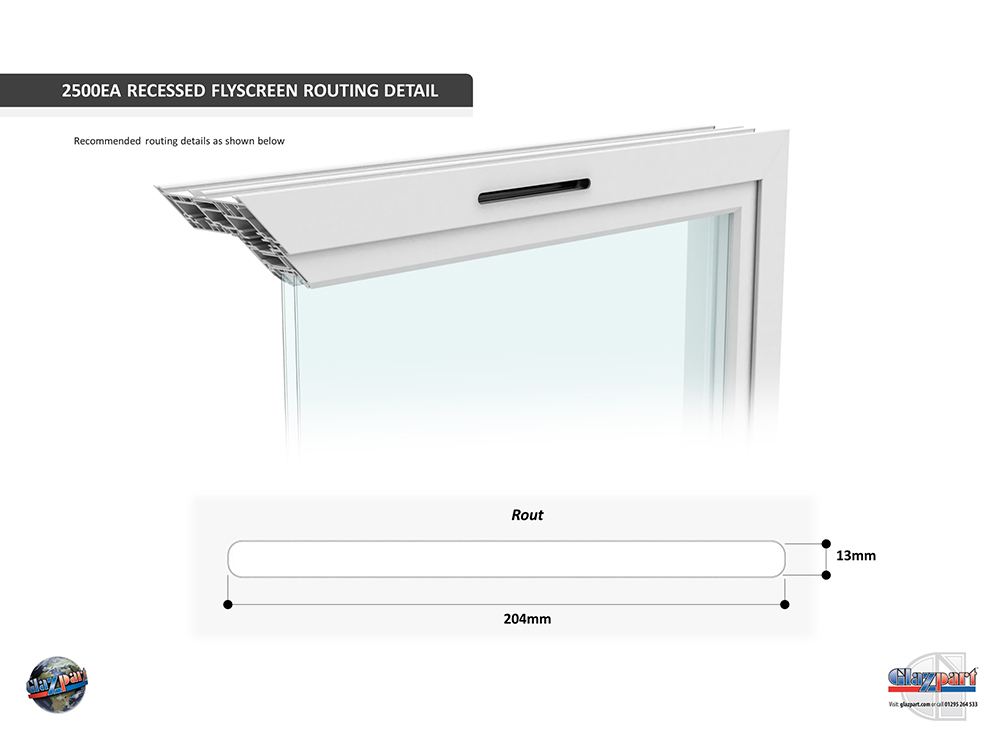

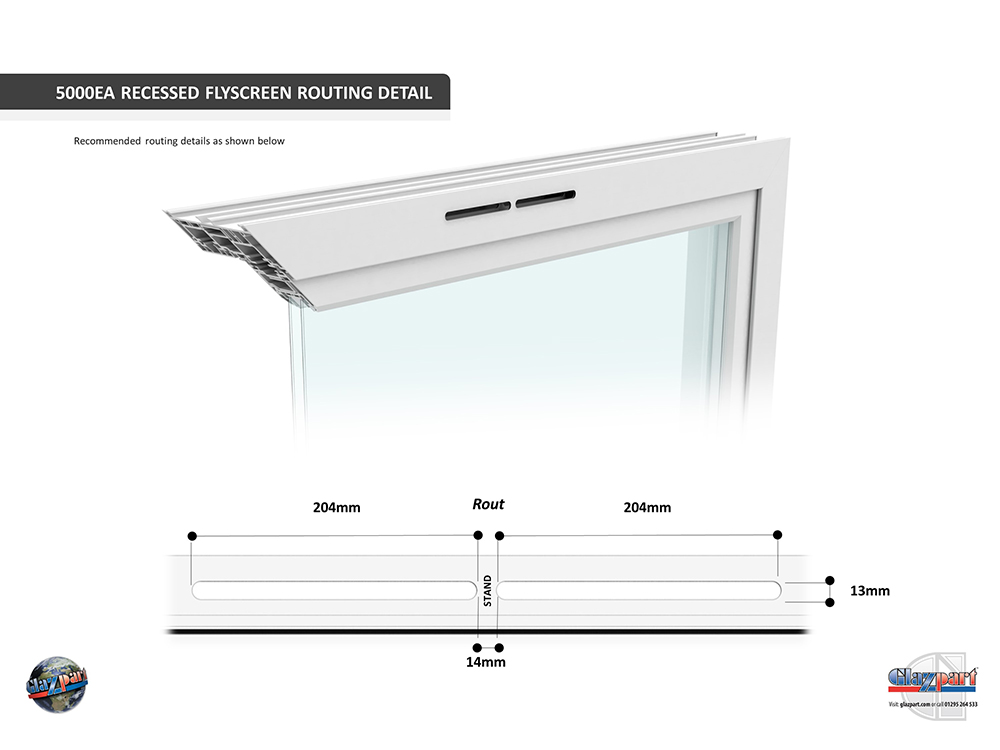

Designed and developed for the 2500EQA and 5000EQA Link vent the new recessed grille offers an even more discrete solution for provision of background ventilation over the frame of your window or door opening.
Standard Vent flat grilles
White
2000140B
Brown
2000141B
Black
2000142B
Pure White RAL 9010
2000143B
Brilliant White
2000144B
Oak Brown Tan 21
2000145B
Cream RAL 1015
2000152B
Grey RAL 7016
2000148B
White
4000140B
Brown
4000141B
Black
4000142B
Pure White RAL 9010
4000143B
Brilliant White
4000144B
Oak Brown Tan 21
4000145B
Cream RAL 1015
4000152B
Grey RAL 7016
4000148B
Designed and developed for the 2500EQA and 5000EQA Link vent the new recessed grille offers an even more discrete solution for provision of background ventilation over the frame of your window or door opening.
Combustion Air Vents
Combustion air vents provide a permanent supply of combustion air to rooms containing fuel-burning appliances which are not room-sealed. Maybe used to meet gas safety regulations and the requirements of Building Regulations Approved Document J1.
Requirements
All open-flued fuel-burning appliances require an adequate supply of combustion air from the room so that:
- The appliance and its flue operate efficiently.
- Fuel is properly burnt, so harmful fumes are not produced.
- The appliance will not draw oxygen from the air in the room.
- Combustion products are properly vented through the flue to avoid any risk of build up inside the room.
The provision of an adequate air supply is a mandatory requirement of the Building Regulations J1. There is also a legal obligation when installing or servicing appliances to ensure that there is an adequate air supply.
This is particularly important when new windows or doors have been fitted, which are usually weather stripped, so cutting down the ‘Infiltration’ air supply.
To meet the requirement, a vent should be installed which must not be closeable, should prevent draughts, and must be large enough for the rating of the appliance.
Capacity
Based on Approved Document J1/2/3, one pair of Combustion Air Vents is suitable for:
- Gas appliances up to 18kW (61 000Btu/h) input.
- Solid fuel closed appliances up to 14kW (47 000Btu/h) output.
- Solid fuel open appliances up to 10,000 mm2 throat opening area.
- Oil burning appliances up to 14kW (47 000Btu/h) output.
Bi-fold / Patio Vents
Glazpart have led the market for special applications developing a flat fly screen (grill) to allow background ventilation o be supplied through operating bi-fold / patio door sets.
Sash Windows
Specifically designed for sash windows using the slimline trickle ventilator. Glazpart developed an offset clip to allow for lower plaster lines the ventilator is moved vertically relative to the 10mm slot for applications such as sash windows, where space is at a premium. These give offsets of +/- 2mm.
